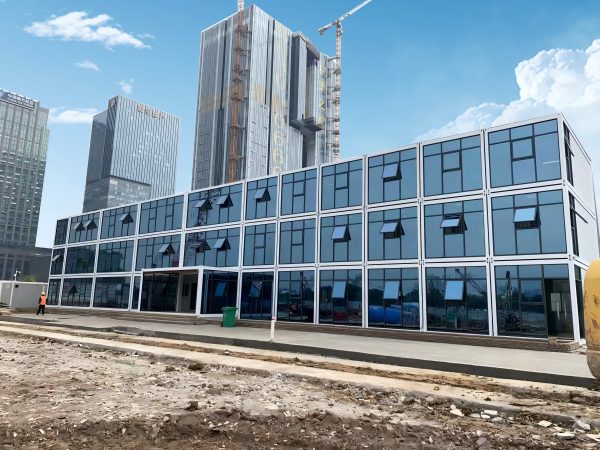

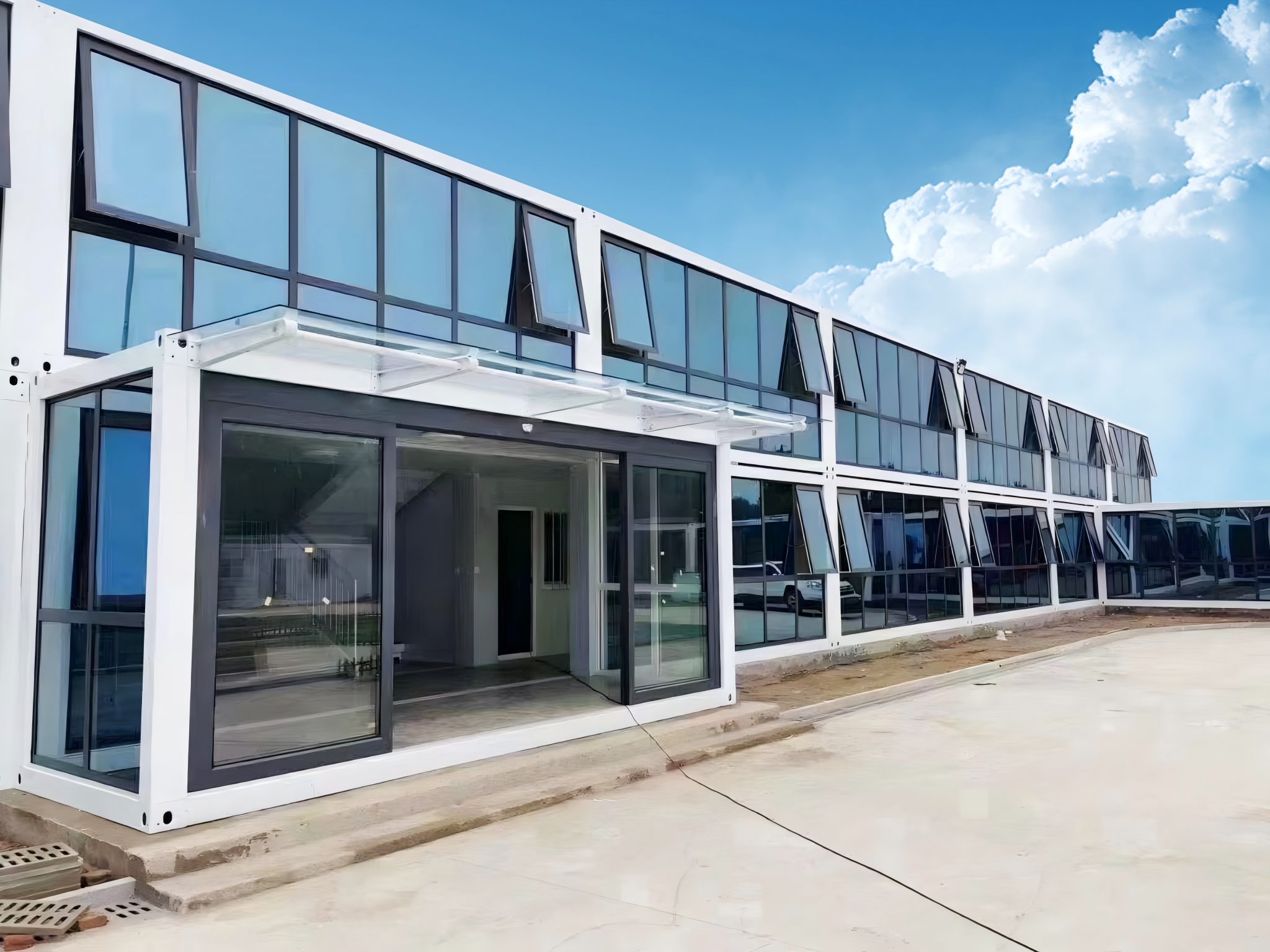

Glass curtain wall modular container house
- Flat-Pack Container House is a type of modular products designed byusing the steel frame and light-weight wall panelssystem. One Flat- Pack consists of top frame, bottom frame, 4 posts and 14 pieces exchangeable wall panels. It can be flattened for easy transporting.
- EASY TRANSPORTING
- 4 units can be packed as a 20’ shipping container, which can save 3/4 freight cost; and 6 units can be packed into a 40’ high-cube shipping container.
- FLEXIBLE TRANSPORT METHOD
- Different transport methods are available to be chosen from according to the distance to the desination and site installation conditions. Options are transported as a whole piece
- High quality
- One-stop service
- Professional services
- Global transportation
-
Size：External dimensions:2990mm (W) x 6055mm (L) x 2896mm (H) Internal dimensions:2810mm (W) x 5875mm (L) x 2575mm (H)
-
Eath quake resistance ：8degrees
-
wind Load ：0.6KN/ ㎡
-
Floor Live load : 2.0KN/ ㎡
-
Roof Live load : 0.5KN/ ㎡
-
Column : Sepcifications 210*150mm, Galvanized Steel Frame, Thickness: 2.0-2.5mm，steel grade Q235B
-
Main Beam : Sepcifications 200mm, Galvanized Steel Frame, Thickness: 2.0-2.5mm，steel grade Q235B
-
Roof ：0.5mm Color Steel Plate+ 50mm Glasswool blanket+831*0.4mm Color Steel Plate
-
Secondary Beam ：Sepcifications 100*50mm, Galvanized Steel Square tube, Thickness: 1.5mm，steel grade Q235B
-
Wall ：50mm-75mm fiber glass sandwich panel
-
Flooring ：18mm MGO Fireproof Board
-
Door ：Insulated light steel door
-
Window ：Aluminum alloy window/UPVC sliding window
